Kẹp tôn ngang LC 2 tấn/ LC Type Horizontal Lifting Clamps

Kẹp tôn ngang LC 2 tấn/ LC Type Horizontal Lifting Clamps

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: LC-2
  • Tải trọng: 2 tấn
  • Độ mở miệng: 3-22mm
  • Khối lượng: 3.9 Kg
  • Xuất xứ: Trung Quốc

Tags:

Kẹp tôn ngang LC 2 tấn/ LC Type Horizontal Lifting Clamps

  • This LC clamp is used for horizontal lifting and transfer of steel.Working fields plates and is particularly suited to this application due to the special thing round plate and buffer cams which facilitate easy insertion and removal under the plate being lifted. lt can also beused hanging vertically under a spreader.
    • Kẹp tôn ngang LC 1 tấn/ LC Type Horizontal Lifting Clamps

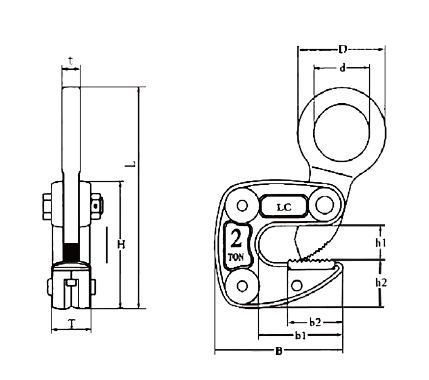

    ModelLC-1LC-2LC-3
    Capacity(tonnes)123
    Grab opening(mm)1-133-2212-35
    Dimensions (mm)B105137173.5
    b16687107
    L166235276
    b2445868
    D729680
    d466135
    H104130177
    h1243642
    h2405067.5
    T3624252
    t141823
    Net Weight(kg)1.63.98.9

    Kẹp tôn ngang LC 2 tấn/ LC Type Horizontal Lifting Clamps

    Kẹp tôn ngang LC 2 tấn/ LC Type Horizontal Lifting Clamps Manual Instruction
