Pa lăng điện xích samsung 500kg SCT-S500 / SCT-S500 Samsung Electric Chain Hoist

Pa lăng điện xích samsung 500kg SCT-S500 / SCT-S500 Samsung Electric Chain Hoist

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: liên hệ
Hiệu lực giá bán:
  • Model: SCT-S500
  • Tải trọng nâng: 500kg
  • Tốc độ nâng hạ: 4.7 mét/ phút hoặc 7 mét/ phút
  • Công suất motor nâng: 0.54Kw x 4P hoặc 0.92Kw x 4P
  • Tốc độ di chuyển: 16.7 mét/ phút
  • Công suất motor di chuyển: 0.33Kw
  • Xích tải: 5.0mm x 1 nhánh
  • Điện áp: 3pha/380V/50Hz
  • Trọng lượng: 64Kg
  • Xuất xứ: Hàn Quốc
  • Nhà sản xuất: SAMSUNG HOIST CO., LTD

Tags:

Pa lăng điện xích samsung 500kg SCT-S500 / SCT-S500 Samsung Electric Chain Hoist

Pa lăng điện xích samsung 1 tấn SCO-S1000 / SCO-S1000 Samsung Electric Chain Hoist
Powerfull & Safety hoisting are employed to this series, SCT series are based on technology and experience that are accumulated over decades from many improvement to fulfill demand on effective hoisting for material handling equipments.

SCT ELECTRIC HOIST SAMSUNG - 3 PHASE

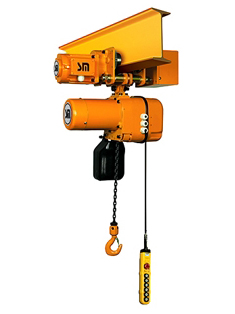

SCT-S250 ( Single Speed )
Capacity : 250 kg
Hoisting Motor Power : 0.54 kw x 4P
Hoisting Speed : 4.6 m/min
or 7 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 5.0 mm × 1 fall
Net Weight : 62 Kgs
Drawing PDF

SCT-D250 ( Double Speed )
Capacity : 250 kg
Hoisting Motor Power : 0.58 kw x 4P / 0.19 kw x 12P
Hoisting Speed : 4.7/1.6 m/min
or 7/2.3 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 5.0 mm × 1 fall
Net Weight : 62 Kgs
Drawing PDF

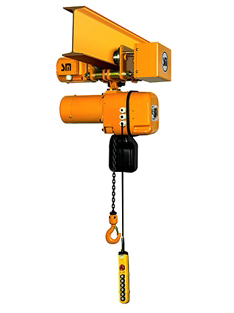

SCT-S500 ( Single Speed )
Capacity : 500 kg
Hoisting Motor Power : 0.54 kw x 4P
or 0.92 kw x4P
Hoisting Speed : 4.6 m/min
or 7 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 5.0 mm × 1 fall
Net Weight : 64 Kgs
Drawing PDF

SCT-D500 ( Double Speed )
Capacity : 500 kg
Hoisting Motor Power : 0.58 kw x 4P / 0.19 kw x12P
Hoisting Speed : 4.7/1.6 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 5.0 mm × 1 fall
Net Weight : 64 Kgs
Drawing PDF

SCT-S1000 ( Single Speed )
Capacity : 1000 kg
Hoisting Motor Power : 1.25 kw x 4P
Hoisting Speed : 5.8 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 7.1 mm × 1 fall
Net Weight : 72 Kgs
Drawing PDF

SCT-D1000 ( Double Speed )
Capacity : 1000 kg
Hoisting Motor Power : 1.25 kw x 4P / 0.63 x 8P
Hoisting Speed : 5.8/2.9 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 7.1 mm × 1 fall
Net Weight : 72 Kgs
Drawing PDF

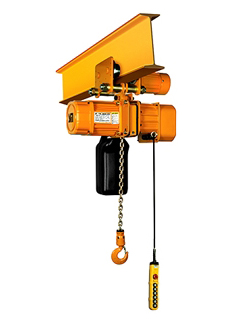

SCT-S1250 ( Single Speed )
Capacity : 1250 kg
Hoisting Motor Power : 1.7 kw x 4P
Hoisting Speed : 5.8 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 7.1 mm × 1 fall
Net Weight : 72 Kgs
Drawing PDF

SCT-D1250 ( Double Speed )
Capacity : 1250 kg
Hoisting Motor Power : 1.7 kw x 4P / 0.85 kw x 8P
Hoisting Speed : 5.8/2.9 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 16.7 m/min
Load Chain : Ø 7.1 mm × 1 fall
Net Weight : 72 Kgs
Drawing PDF

SCT-S1500 ( Single Speed )
Capacity : 1500 kg
Hoisting Motor Power : 2.1 kw x 4P
Hoisting Speed : 6.7 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 8 mm × 1 fall
Net Weight : 90 Kgs
Drawing PDF

SCT-D1500 ( Double Speed )
Capacity : 1500 kg
Hoisting Motor Power : 2.1 kw x 4P / 1.25 kw x 8P
Hoisting Speed : 6.7/3.4 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 8 mm × 1 fall
Net Weight : 90 Kgs
Drawing PDF

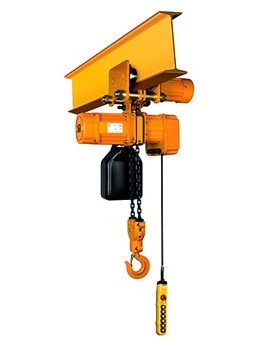

SCT-S2000D ( Single Speed )
Capacity : 2000 kg
Hoisting Motor Power : 1.25 kw x 4P
Hoisting Speed : 2.9 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 7.1 mm × 2 fall
Net Weight : 102 Kgs
Drawing PDF

SCT-D2000D ( Double Speed )
Capacity : 2000 kg
Hoisting Motor Power : 1.25 kw x 4P / 0.63 kw x 8P
Hoisting Speed : 2.9/1.5 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 7.1 mm × 2 fall
Net Weight : 102 Kgs
Drawing PDF

SCT-S2500D ( Single Speed )
Capacity : 2500 kg
Hoisting Motor Power : 1.7 kw x 4P
Hoisting Speed : 2.9 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 7.1 mm × 2 fall
Net Weight : 110 Kgs
Drawing PDF

SCT-D2500D ( Double Speed )
Capacity : 2500 kg
Hoisting Motor Power : 1.25 kw x 4P / 0.63 kw x 8P
Hoisting Speed : 2.9/1.5 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 7.1 mm × 2 fall
Net Weight : 110 Kgs
Drawing PDF

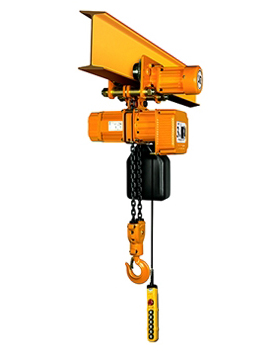

SCT-S3000D ( Single Speed )
Capacity : 3000 kg
Hoisting Motor Power : 2.1 kw x 4P
Hoisting Speed : 3.4 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 8 mm × 2 fall
Net Weight : 105 Kgs
Drawing PDF

SCT-D3000D ( Double Speed )
Capacity : 3000 kg
Hoisting Motor Power : 2.1 kw x 4P / 1.25 kw x 8P
Hoisting Speed : 3.4/1.7 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 8 mm × 2 fall
Net Weight : 105 Kgs
Drawing PDF

SCT-S2000 ( Single Speed )
Capacity : 2000 kg
Hoisting Motor Power : 2.9 kw x 4P
Hoisting Speed : 6.8 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 11.2 mm × 1 fall
Net Weight : 195 Kgs
Drawing PDF

SCT-D2000 ( Double Speed )
Capacity : 2000 kg
Hoisting Motor Power : 2.9 kw x 4P / 1.5 kw x 8P
Hoisting Speed : 6.8/3.4 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 11.2 mm × 1 fall
Net Weight : 205 Kgs
Drawing PDF

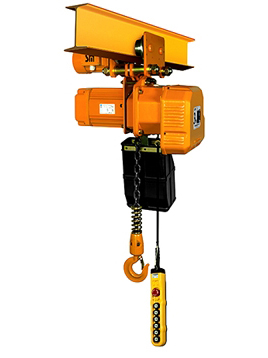

SCT-S3000 ( Single Speed )
Capacity : 3000 kg
Hoisting Motor Power : 2.9 kw x 4P
Hoisting Speed : 5 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 11.2 mm × 1 fall
Net Weight : 195 Kgs
Drawing PDF

SCT-D3000 ( Double Speed )
Capacity : 3000 kg
Hoisting Motor Power : 2.9 kw x 4P / 1.5 kw x 8P
Hoisting Speed : 5.0/2.5 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 15.8 m/min
Load Chain : Ø 11.2 mm × 1 fall
Net Weight : 205 Kgs
Drawing PDF

SCT-S5000D ( Single Speed )
Capacity : 5000 kg
Hoisting Motor Power : 2.9 kw x 4P
Hoisting Speed : 2.5 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 13.3 m/min
Load Chain : Ø 11.2 mm × 2 fall
Net Weight : 243 Kgs
Drawing PDF

SCT-D5000D ( Double Speed )
Capacity : 5000 kg
Hoisting Motor Power : 2.9 kw x 4P / 1.5 kw x 8P
Hoisting Speed : 2.5/1.3 m/min
Traversing Motor Power : 0.33 kw x 4P
Traversing  Speed : 13.3 m/min
Load Chain : Ø 11.2 mm × 2 fall
Net Weight : 253 Kgs
Drawing PDF

Samsung Electric Chain Hoist catalog

Samsung Electric Chain Hoist Instruction Manual
